Introduction

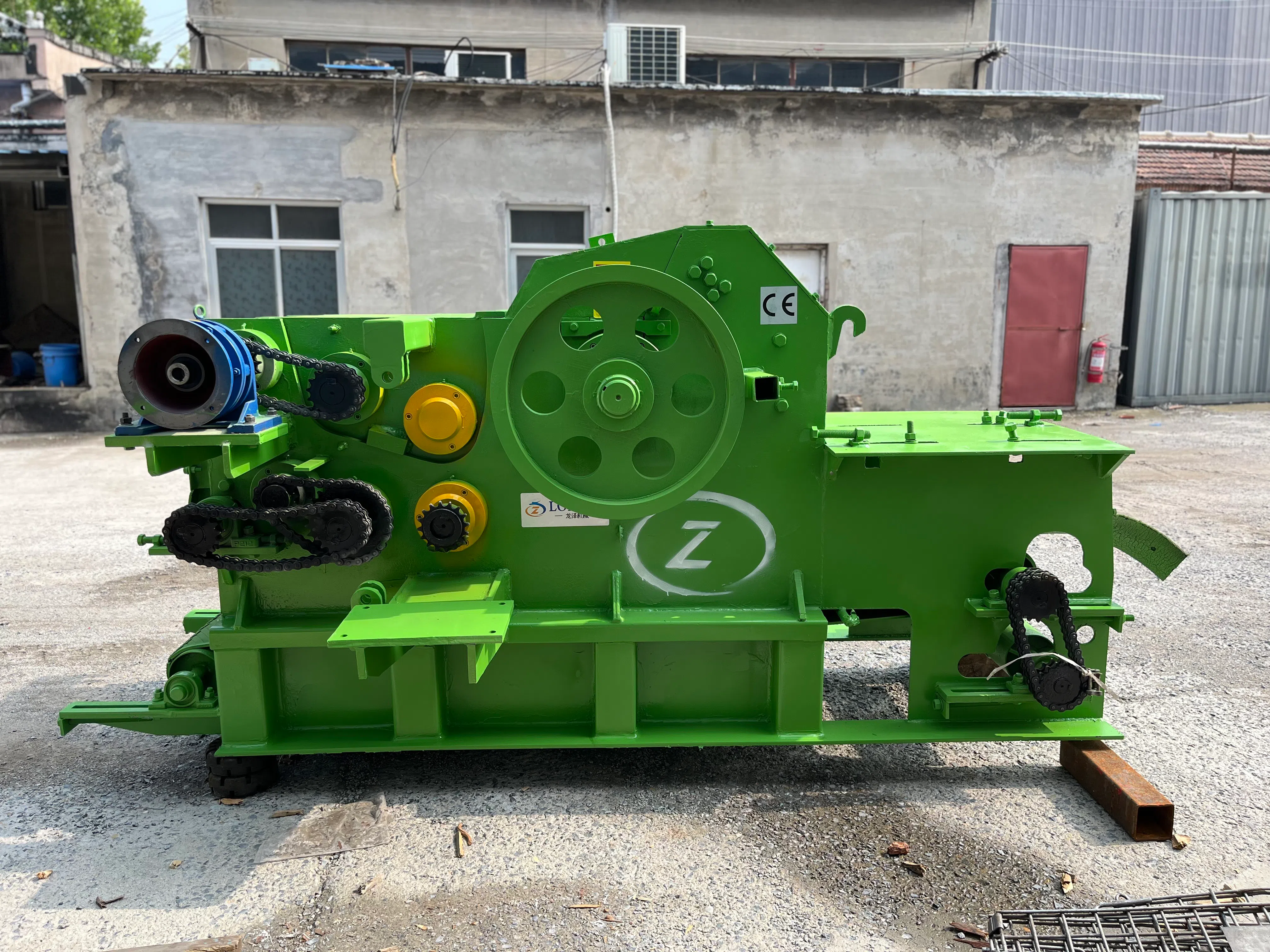

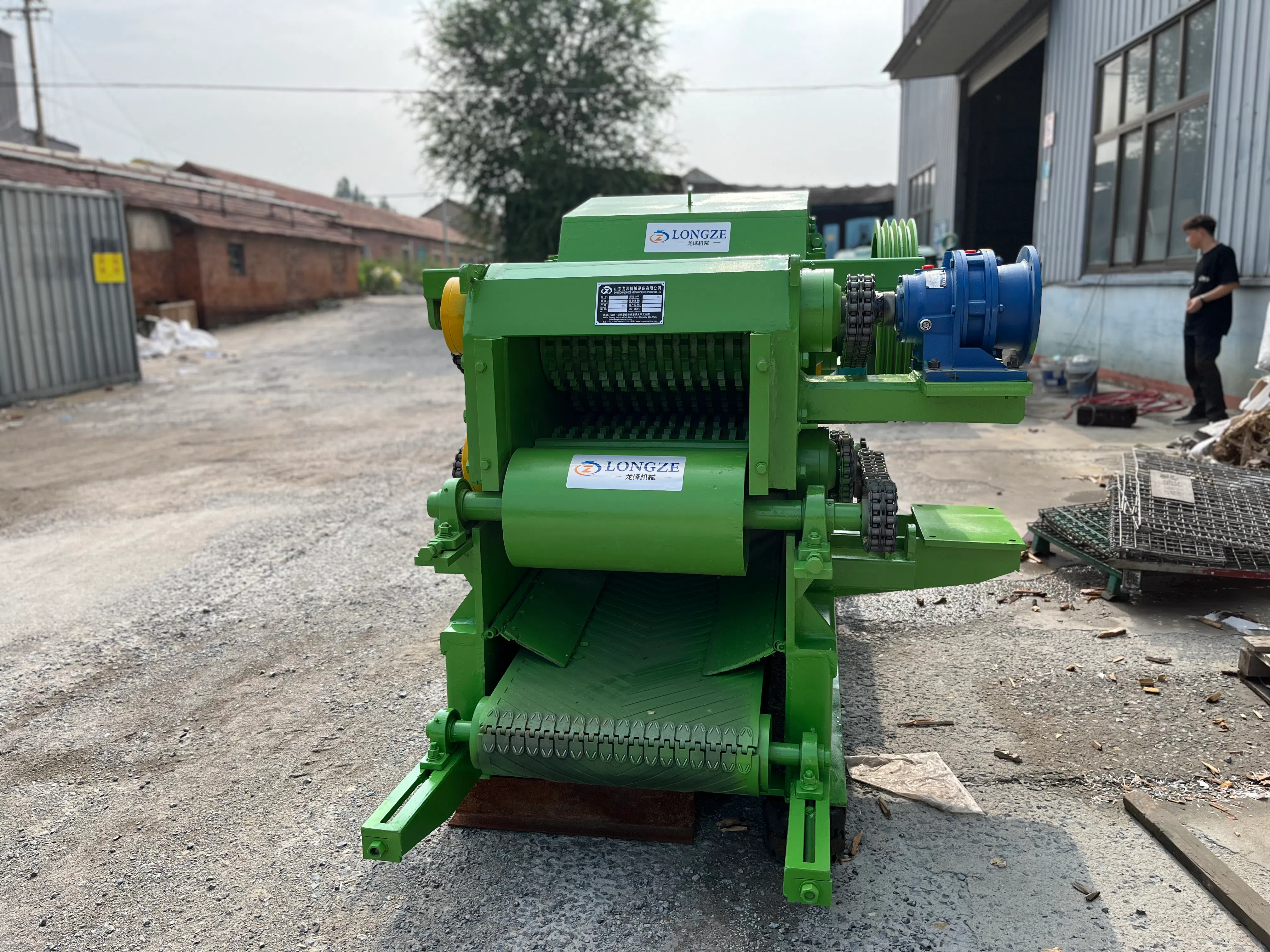

Model GX216 is a high-efficiency industrial shredding/crushing machine with stable performance and compact structure. It is equipped with a 650 mm rotor diameter and 3 high-hardness blades, running at a blade speed of 590 rpm to ensure strong and stable cutting force. The machine adopts a 540×240 mm feeding port and supports a maximum material diameter of 230 mm, with a feeding speed of 38 m/min to achieve smooth and continuous feeding.
Its processing capacity ranges from 5–8 tons per hour (tph), powered by a 55 kW main motor, matched with feeding motors (3+4 kW), discharging motors (3+3 kW) and a 1.5 kW oil pump motor for reliable and energy-saving operation. The machine is equipped with a 4000 mm feeding conveyor and a 10000 mm discharge conveyor to realize automatic conveying and discharging. With a total weight of 4.5 tons, the whole unit can be delivered in one 20-foot general purpose container (1×20’GP), which is convenient for transportation and loading.
Product Parameter
| Model | GX216 |
| Rotor diameter (mm) | 650 |
| Blade quantity (piece) | 3 |
| Input size (mm) | 540 x 240 |
| Blade rotational speed (rpm) | 590 |
| Rate of feeding (m/min) | 38 |
| Max material diameter (mm) | 230 |
| Capacity (tph) | 5-8 |
| Main power (kw) | 55 |
| Feeding motor (kw) | 3+4 |
| Discharging motor (kw) | 3+3 |
| Oil pump motor (kw) | 1.5 |
| Feeding conveyor length (mm) | 4000 |
| Discharge conveyor length (mm) | 10000 |
| Weight (t) | 4.5 |
| Delivery | 1x20’GP |
Advantages
Deliver uniform, premium wood chips efficiently
Process all types of wood raw material in one machine
Built for heavy-duty, continuous production
Minimize downtime with easy-access maintenance
Cut operating costs with energy-saving design
FAQ
Q1:Is it worth buying a wood chipper?
A1:Buying a wood chipper is worth it if you own a large or heavily wooded property and generate a continuous supply of branches that makes hauling or burning inconvenient. If you only trim a few small trees once a year, renting a machine or using local yard waste pickup is usually cheaper and easier.
Q2:What is a wood chipper?
A2:A wood chipper is a machine used to reduce tree branches, limbs, and trunks into small wood chips.
Q3:What is the best wood chipper for your money?
A3:The best wood chipper for your money depends on whether you need a budget-friendly electric model for small yards or a powerful gas model for heavy acreage.
Q4:What is a chipper used for?
A4:A wood chipper turns large tree branches, limbs, and small logs into small wood chips using a spinning metal drum or disc with sharp steel blades
