Introduction

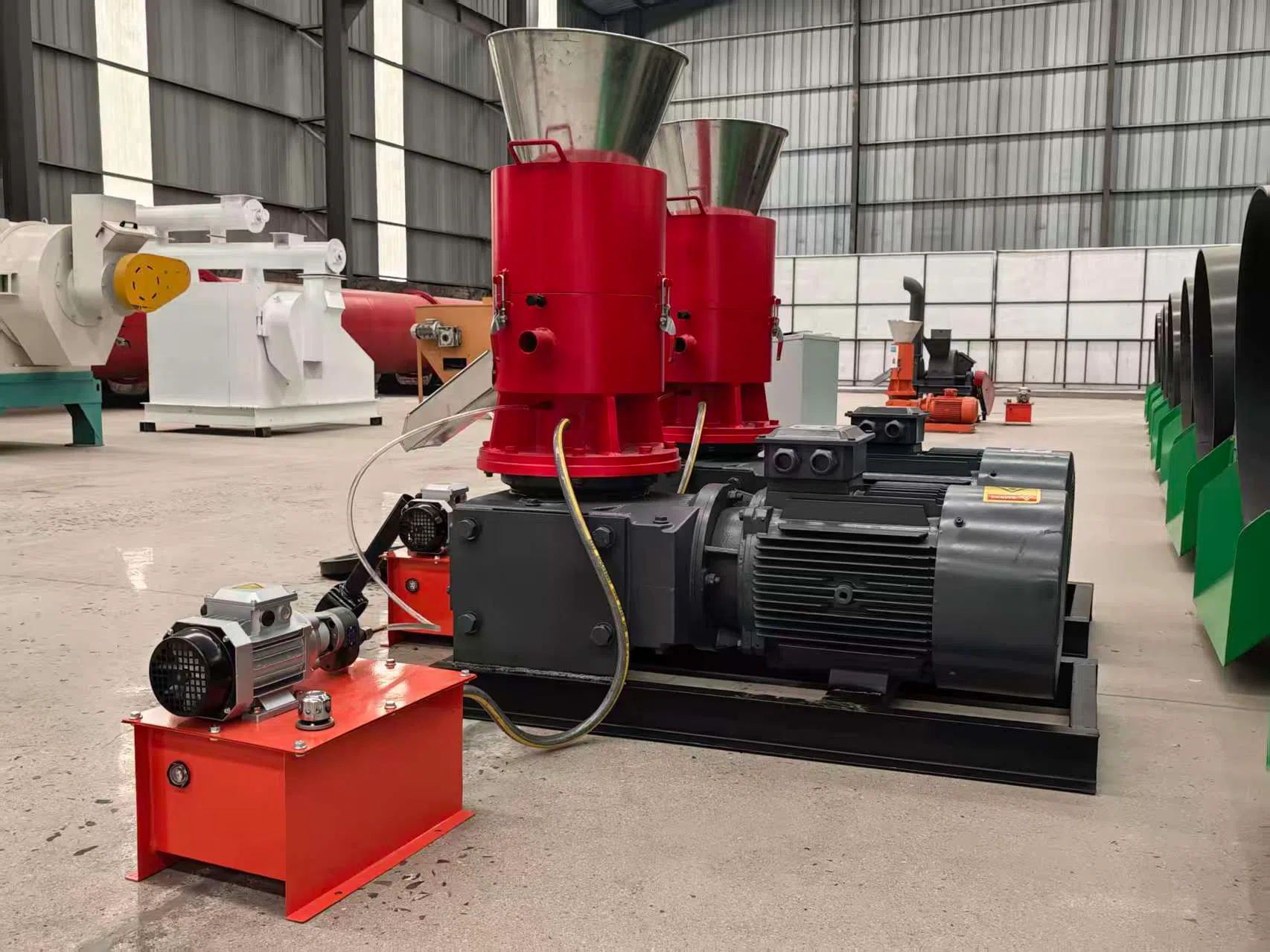

The 37KW stalk flat die pellet machine is a heavy-duty industrial pelletizing equipment independently developed for medium and large-scale commercial production. It is offered in two dedicated standalone models: specialized for biomass pellet production and exclusive for animal feed pellet production, with no dual-purpose mixed design. Fitted with a new-generation gear reducer system, the machine delivers powerful and steady torque, overcoming the weakness of insufficient power and easy wear of traditional pellet machines.
Weighing 1000kg and equipped with a 1700×800×1400mm integrated body structure and dual balanced rollers, the equipment runs steadily with low vibration and high operational safety. It achieves industrial-grade stable output, reaching 400–500kg/h for sawdust, peanut shells and other biomass materials and 800–1000kg/h for various feed raw materials. Complete with electric control system, automatic lubrication device and full set of repair tools, and packaged with export-standard wooden boxes, it is perfectly adapted for long-term overseas commercial operation and industrial batch production.
Parameters
SKJ400 | - Power: 37kw - New generation Gear reducer system -Capacity for wood:400-500kg/h -Capacity for feed:800-1000kg/h --Die Mould can choose: 4mm/6mm/8mm/10mm - Roller numbers: 2 rollers - Weight (T): 1000kg - Dimension (mm): 1700×800×1400 Whole set include: *Pellet machine with electric motor *Oil lubricating pump *Repair Tool *wooden box package |
Advantages
Reliable gear‑driven power transmission: This 37kW SKJ400 flat die pellet mill features the latest gear reducer system. It offers high transmission efficiency and stable compression force, minimizing unexpected downtime caused by belt aging or breakage.
Twin roller compression design: Two precision‑matched pressing rollers evenly squeeze raw materials through the die plate, ensuring consistent pellet hardness and reducing powder residue during forming.
Independent throughput for different raw materials: Grain‑based feed materials achieve 800–1000kg hourly production, while sawdust and woody materials run at 400–500kg/h. The machine keeps stable performance when switching raw materials..

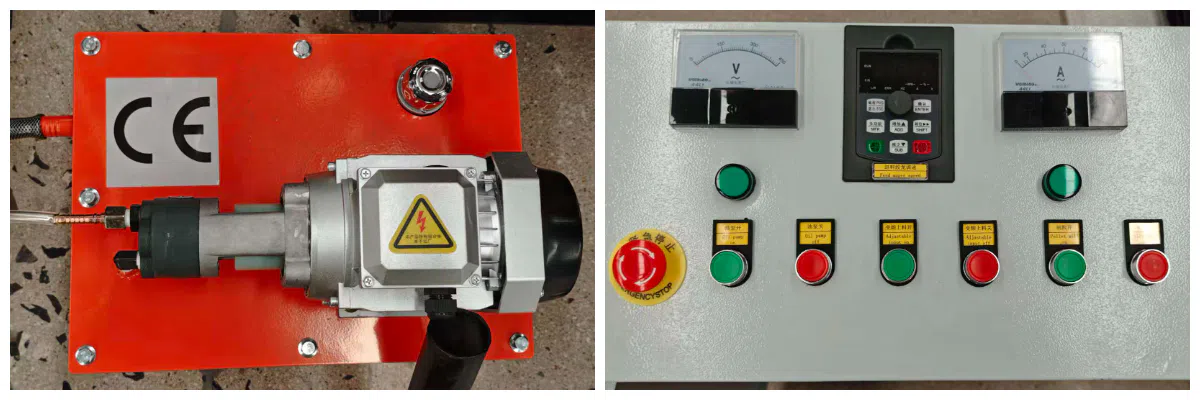

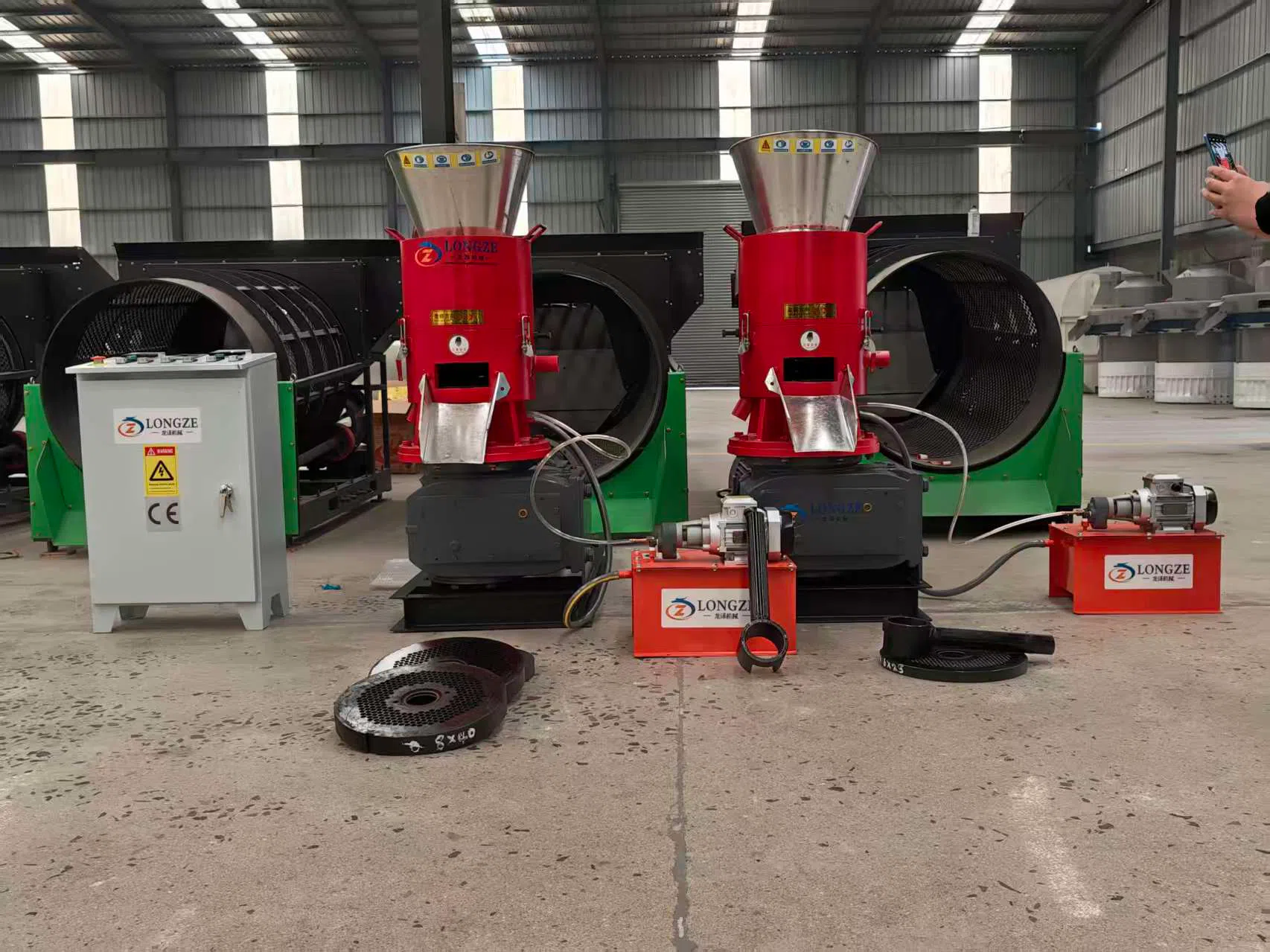

All‑inclusive delivery configuration: Standard delivery covers motor‑equipped pellet host, electric control panel, forced lubrication pump and repair kit. Export wooden box packaging protects equipment well for cross‑border logistics.
FAQ
Q1: What makes this 37KW model different from lower-power pellet machines?
A1: It adopts upgraded gear reducer and 37KW high-power configuration, with stronger torque reserve and larger production capacity. The 1000kg heavy-duty body ensures more stable long-hour operation, completely meeting industrial continuous production requirements beyond small household machines.
Q2: Is the pellet specification adjustable for different production needs?
A2: Yes. The machine is compatible with four mainstream mould sizes: 4mm, 6mm, 8mm and 10mm. Users can replace the mould freely to produce pellets with different diameters, adapting to fuel combustion standards and animal feeding requirements of different scenarios.
Q3: What kind of project cases is this equipment suitable for?
A3: It has mature overseas application cases, such as peanut shell and sawdust pellet production projects in Pakistan. It is widely used for medium-sized biomass fuel factories and large-scale centralized breeding feed processing projects worldwide.
