Introduction

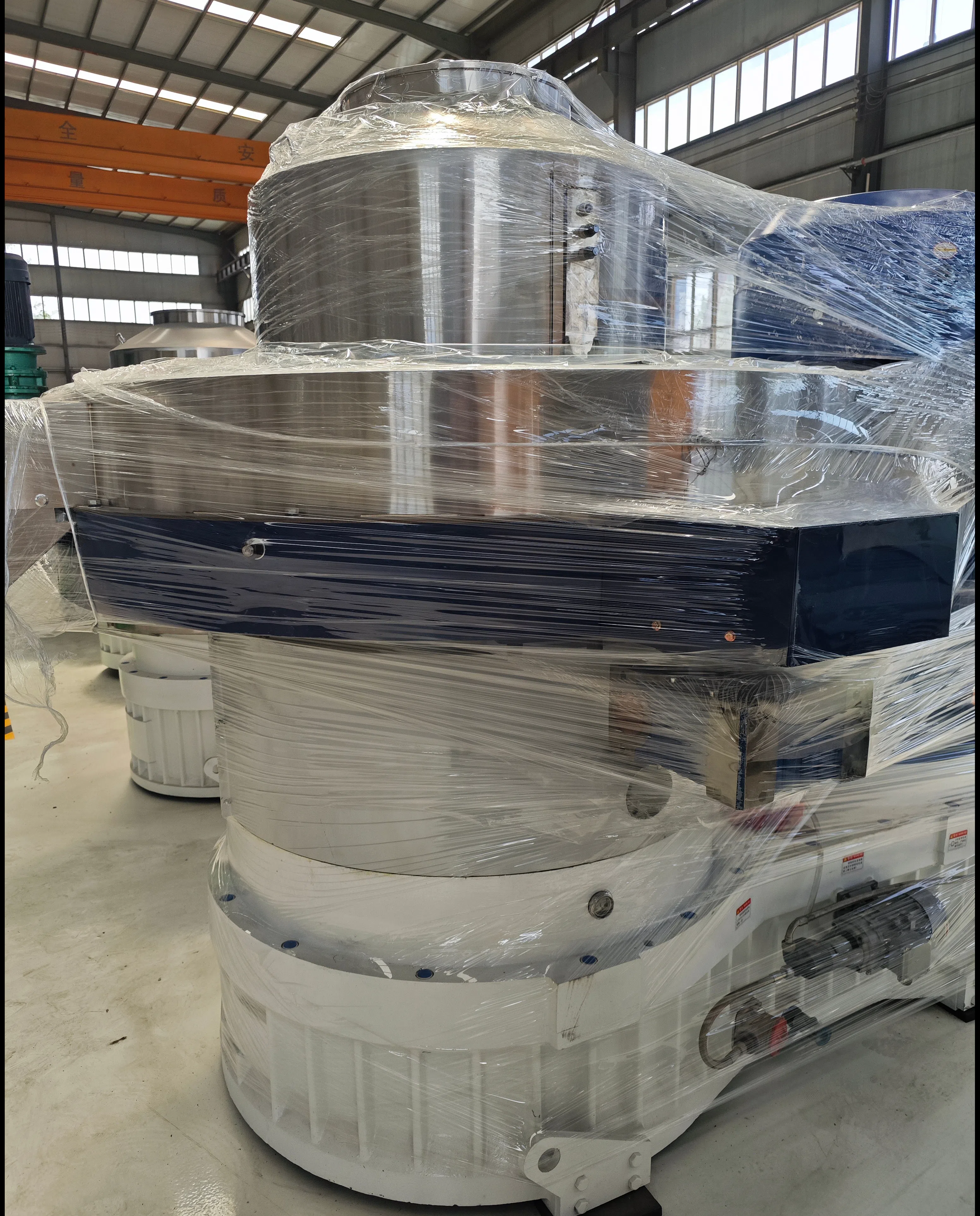

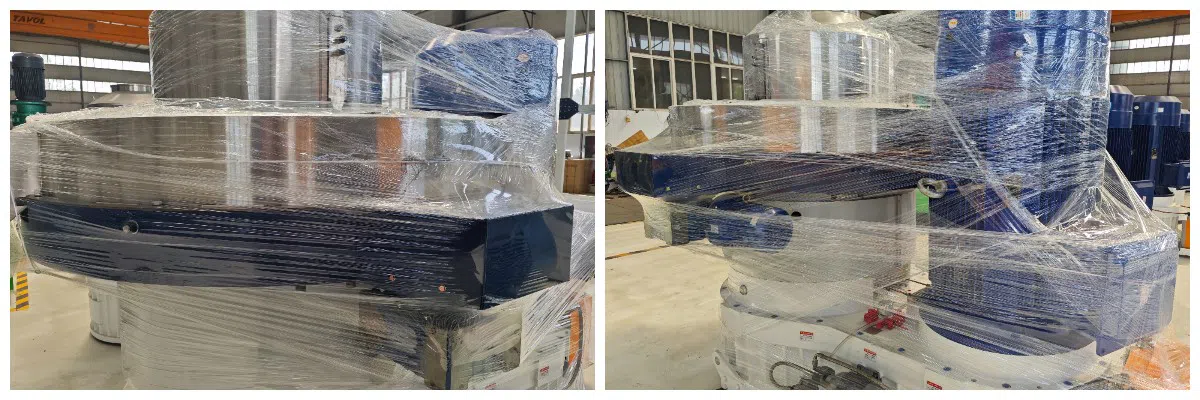

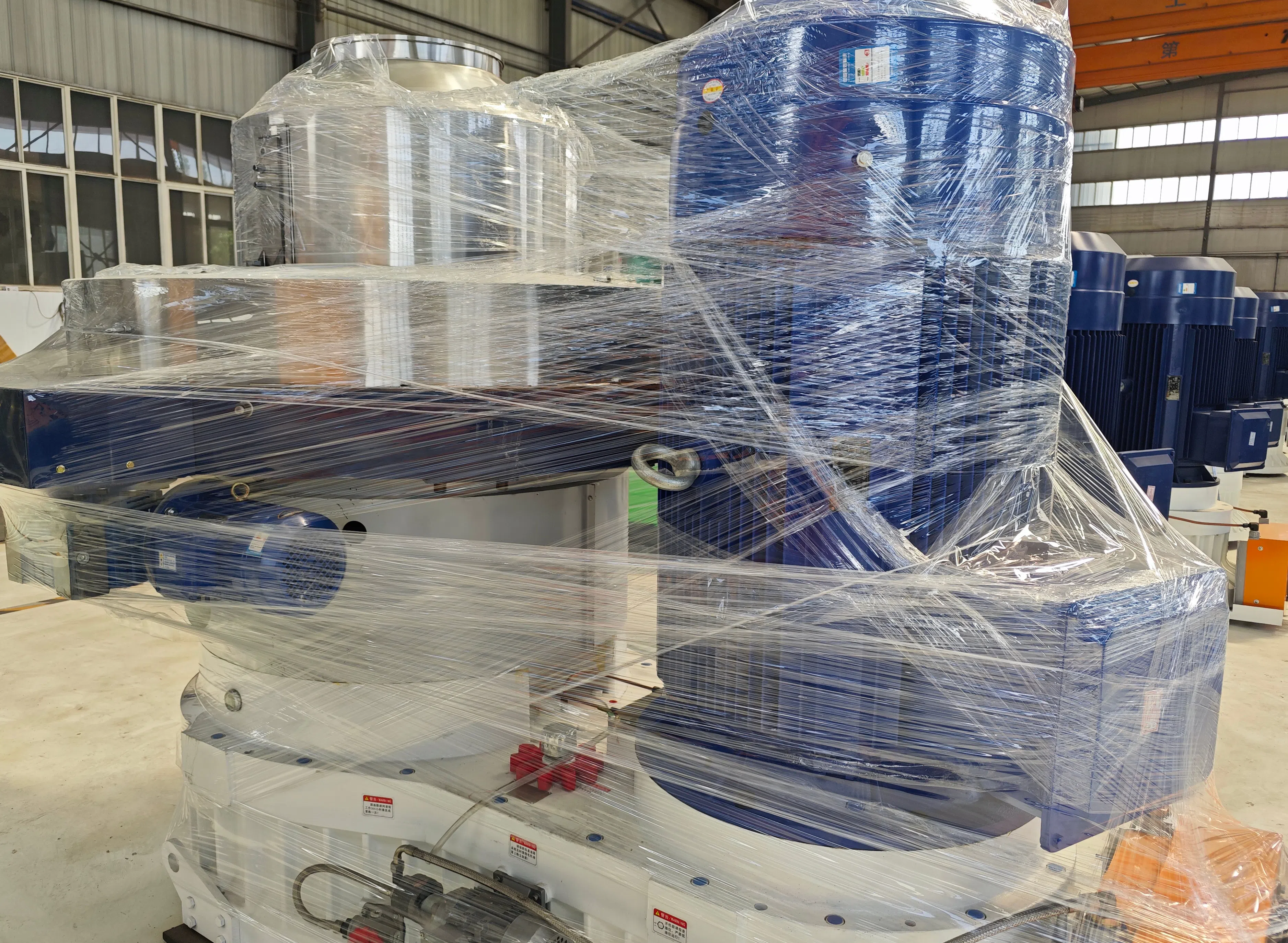

Serving high-standard industrial biomass manufacturing fields, the 8th-gen 220KW XGJ850 palm fiber ring die pellet machine is a heavy-duty high-yield pelletizing unit built for continuous intensive production. Boasting a solid 12000kg integral frame and enlarged 2650×1850×2100mm body size, this premium model greatly enhances overall structural stability and shock resistance, effectively avoiding vibration and loose parts during long-hour high-load operation. Driven by a powerful 220KW main motor, it maintains a steady hourly output of 2.5–3 tons, fully catering to the large-batch production demands of professional large-scale pellet processing factories.
Advanced optimized gear transmission technology minimizes power attenuation and mechanical friction loss during operation. Complete supporting auxiliary systems covering automatic feeding, enhanced gear lubrication and high-efficiency cyclone dust removal enable fully automated streamlined production. Capable of producing 6mm to 12mm multi-specification pellets, the equipment features wide compatibility with woody residues and agricultural biomass, acting as reliable core host equipment for standardized large-capacity biomass production lines.
Parameters
8TH(220kw) XGJ850 Pellet Machine | - Output: 2.5-3T/H -Power(kw):220+3+1.1+2.2+0.25kw -Pellet diameter option :6, 8,10,12mm -Weight of machine : 12000kg -Dimension(mm): 2650×1850×2100 - New generation Gear reducer system Whole set include: *Pellet push system 3kw *Gear oil lubricate pump 1.1kw *Cyclone dust collector 2.2kw *Automatic roller lubrication pump 0.25kw *Electric control Box (Soft Start) |
Advantages
1. High-efficiency power matching: Equipped with a high-torque 220KW main motor and upgraded 3KW feeding system, the equipment realizes synchronous material conveying and high-pressure extrusion. It eliminates feeding lag and material accumulation common in medium-power models, sustaining a peak stable output of 2.5-3T/H and greatly boosting overall production throughput.
2. Low-loss transmission performance: The updated gear reducer optimizes power transfer efficiency, cutting mechanical friction loss and idle power consumption. Heavy-duty body design restrains operational vibration, ensuring consistent pellet density and molding quality throughout mass production.

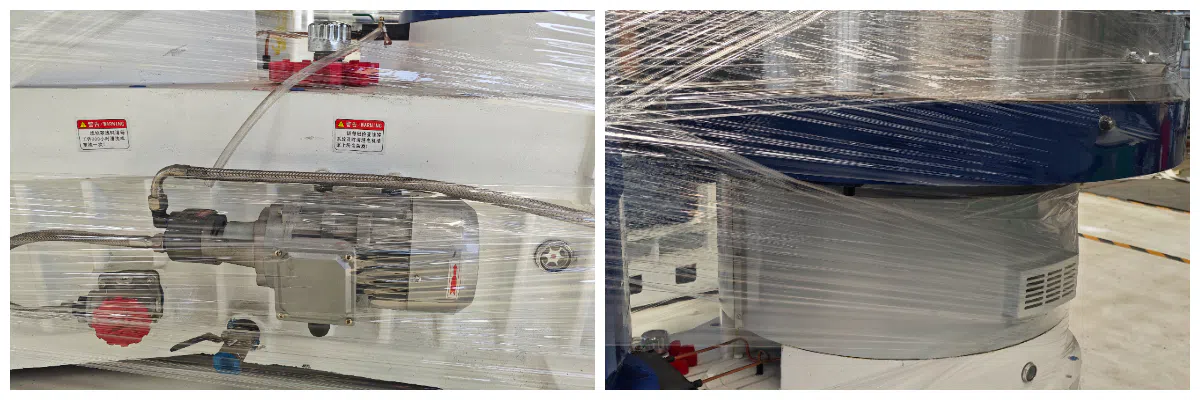

3. Stable intensive operation: Supporting dual lubrication and independent dust removal functions, the machine maintains clean internal operation and uniform component lubrication, lowering daily failure probability and extending continuous working cycle for industrial factories.
FAQ
Q1: Can this machine process mixed biomass raw materials?
A1: Yes. With super-high extrusion pressure and optimized internal compression ratio, it perfectly adapts to mixed materials such as hardwood scraps, soft wood residues, rice straw, wheat straw and other composite biomass, solving the problem of poor molding effect of ordinary machines on mixed materials.
Q2: Can this 220KW unit support 24-hour continuous operation?
A2: Absolutely. The heavy-duty industrial-grade structure, enhanced lubrication system and high-load resistant accessories are all designed for intensive cyclic operation. It maintains stable performance without overheating or fatigue failure, fully adapting to 24-hour uninterrupted industrial production rhythm.
Q3: What kind of production scenarios is the XGJ850 pellet machine tailored for?
A3: It is specially designed for large-scale standardized pellet factories and industrial biomass recycling bases. It fits high-yield continuous production scenarios with large raw material stock, suitable for users who pursue high daily output, stable operation and long-term unattended production.
