Introduction

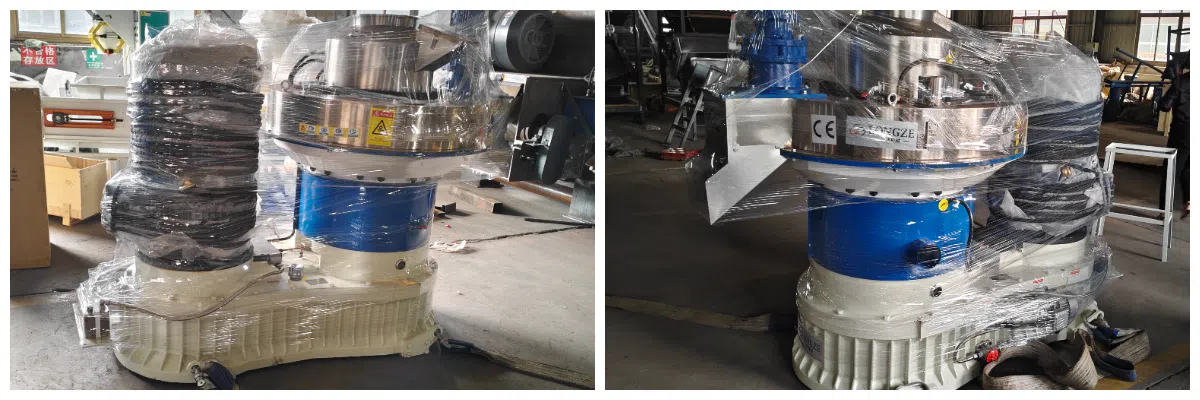

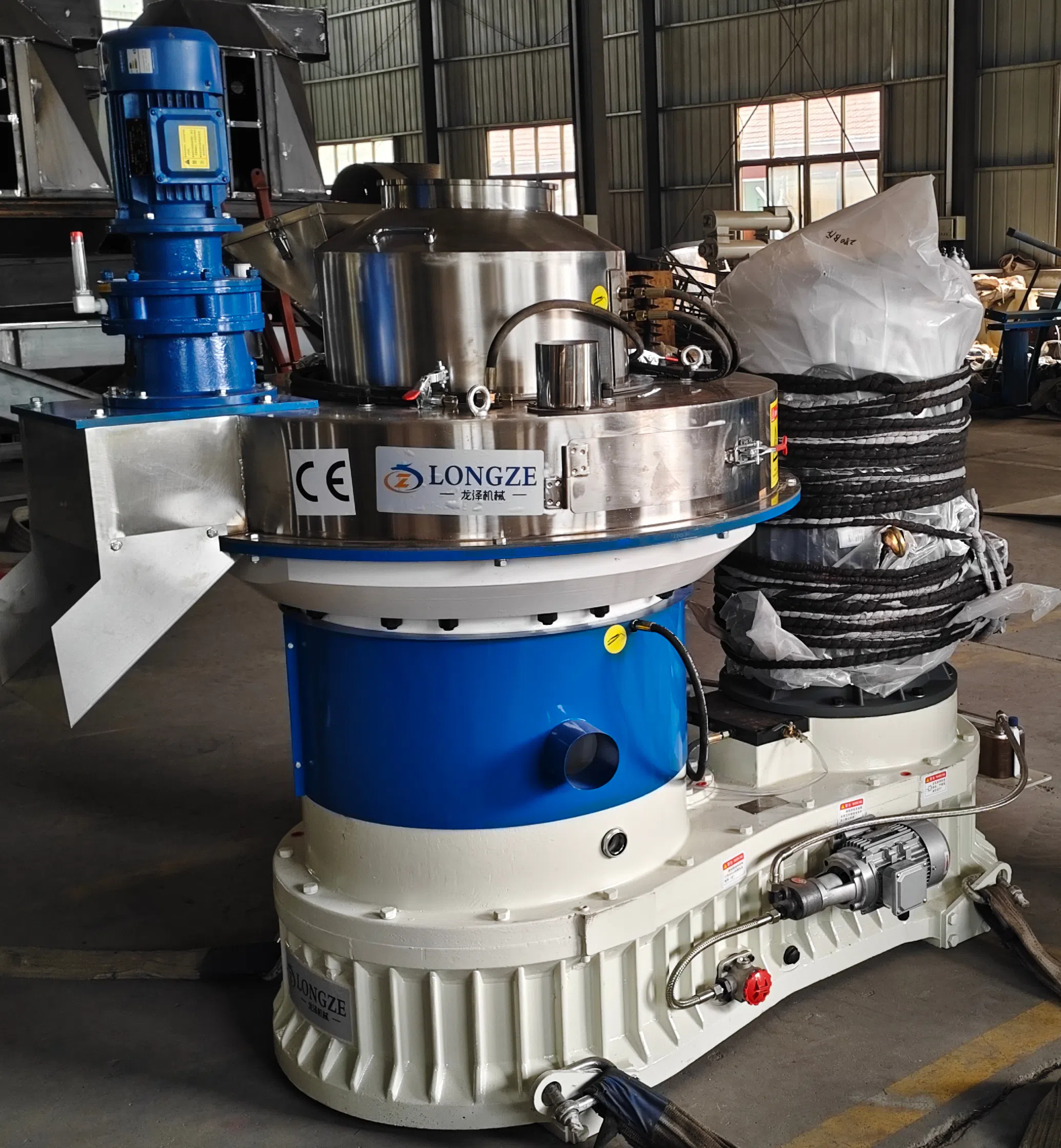

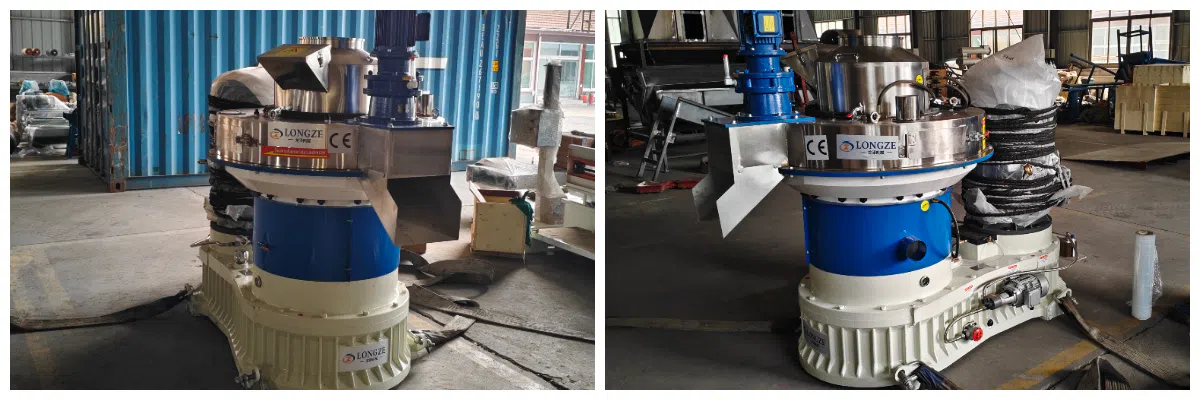

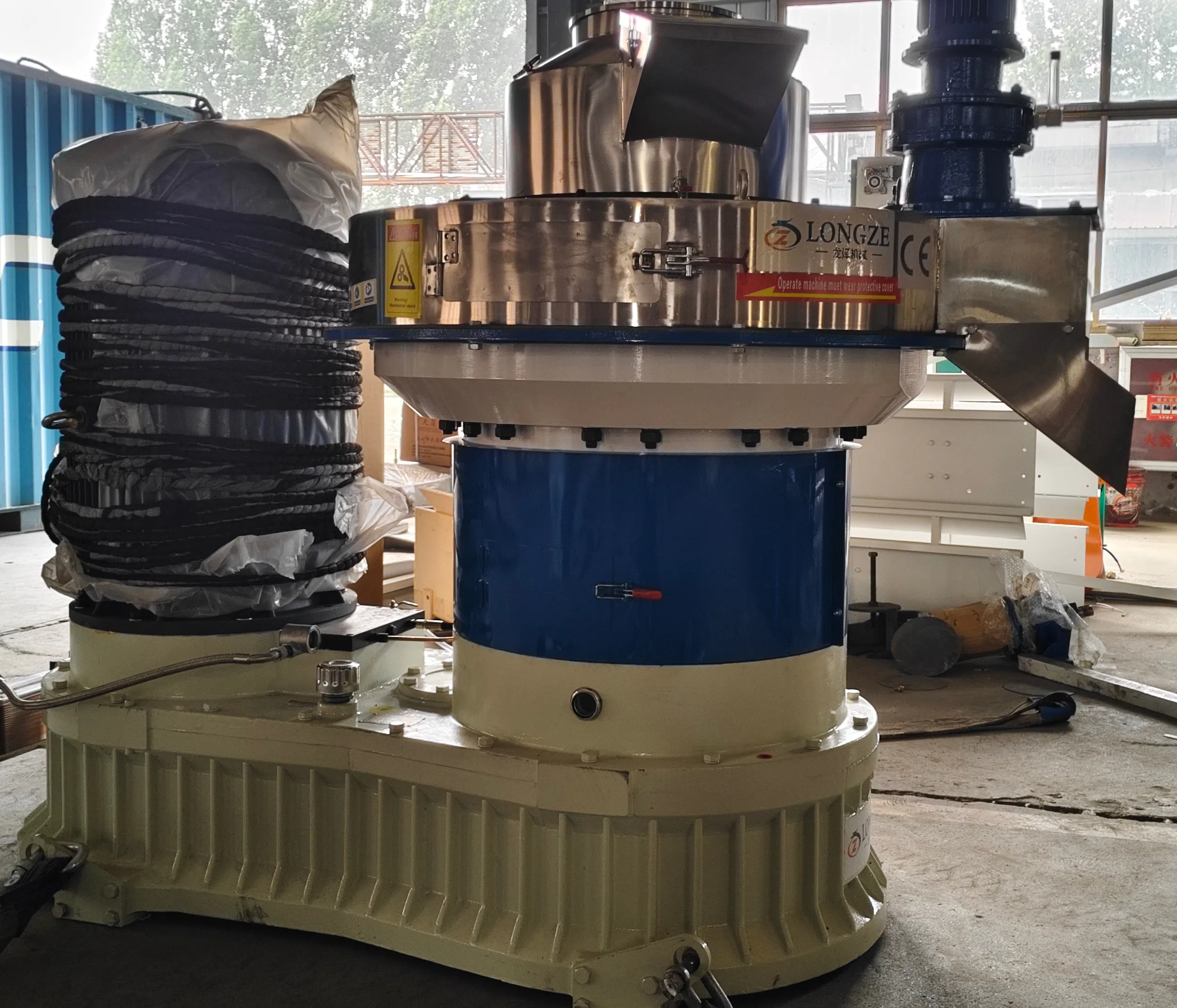

The 90KW wood ring die pellet machine is purpose-built for mid-scale biomass pellet manufacturing projects, engineered to deliver consistent output under continuous round-the-clock operation. Its vertical ring die design paired with a two-roller compression assembly ensures uniform extrusion of woody biomass feedstock. Powered by a 90kW main motor and matched with a complete set of auxiliary power units, the machine reaches a stable production capacity ranging from 1 to 1.5 tons per hour.
Capable of producing pellets between 6mm and 12mm, this unit accommodates bamboo, hardwood residues and shrub materials with 15% moisture content. The heavy-duty frame structure weighs 4000kg, minimizing vibration during high-load working conditions. The integrated automatic lubrication, dust removal and electrical control modules simplify on-site installation and operation. Widely deployed across India’s biomass industry, this pellet mill is a reliable investment for factories aiming to convert local wood waste into high-value solid fuel pellets.
Parameters
(90KW) XGJ560 Pellet Machine | - Output: 1-1.5T/H - Power (kw): 90+1.5+0.75+0.75+0.25kw -Number of rollers: 2 pcs -Pellet diameter option :6, 8,10,12mm -Weight of machine (kgs):4000kg - Dimension(mm):2100*1700*1600 - New generation Gear reducer system Whole set include: *Pellet push system 1.5kw *Gear oil lubricate pump 0.75kw *Cyclone dust collector 0.75kw *Automatic roller lubrication pump 0.25kw *Electric control Box |
Advantages
A standout strength of the XGJ560 90KW ring die pellet mill lies in its upgraded gear reduction drive system. Unlike traditional belt-driven machines, this gear structure delivers stable torque transfer, reduces power loss and lowers wear on rollers and ring die. The dual roller compression layout evenly presses raw materials, greatly reducing the rate of cracked or loose pellets and improving finished product quality.
Automatic lubrication pumps serve both gearbox and rollers on a timed basis, eliminating human forgetting of oil maintenance and extending core part lifespan. The attached cyclone dust collector traps fine wood dust effectively, protecting electrical components and creating a cleaner working environment. The separate electric control box supports convenient operation and emergency stop protection. Ring dies can be replaced quickly to switch pellet sizes. For biomass plant owners, this equipment reduces unexpected breakdowns, cuts maintenance spending and maintains steady hourly output to secure continuous profit.
FAQ
Q1: What raw materials can XGJ560 90KW ring die pellet mill process?
A1: It works for woody biomass materials including bamboo powder, hardwood scraps and shrub biomass. The optimal raw material moisture is about 15%.
Q2: What is the actual output capacity?
A2: The rated output is 1–1.5 tons per hour. Final production is affected by raw material type, moisture content and selected pellet diameter.
Q3: What pellet sizes can this machine produce?
A3: Available pellet diameters: 6mm, 8mm, 10mm, 12mm. You can swap ring dies to change pellet specifications.
