Introduction

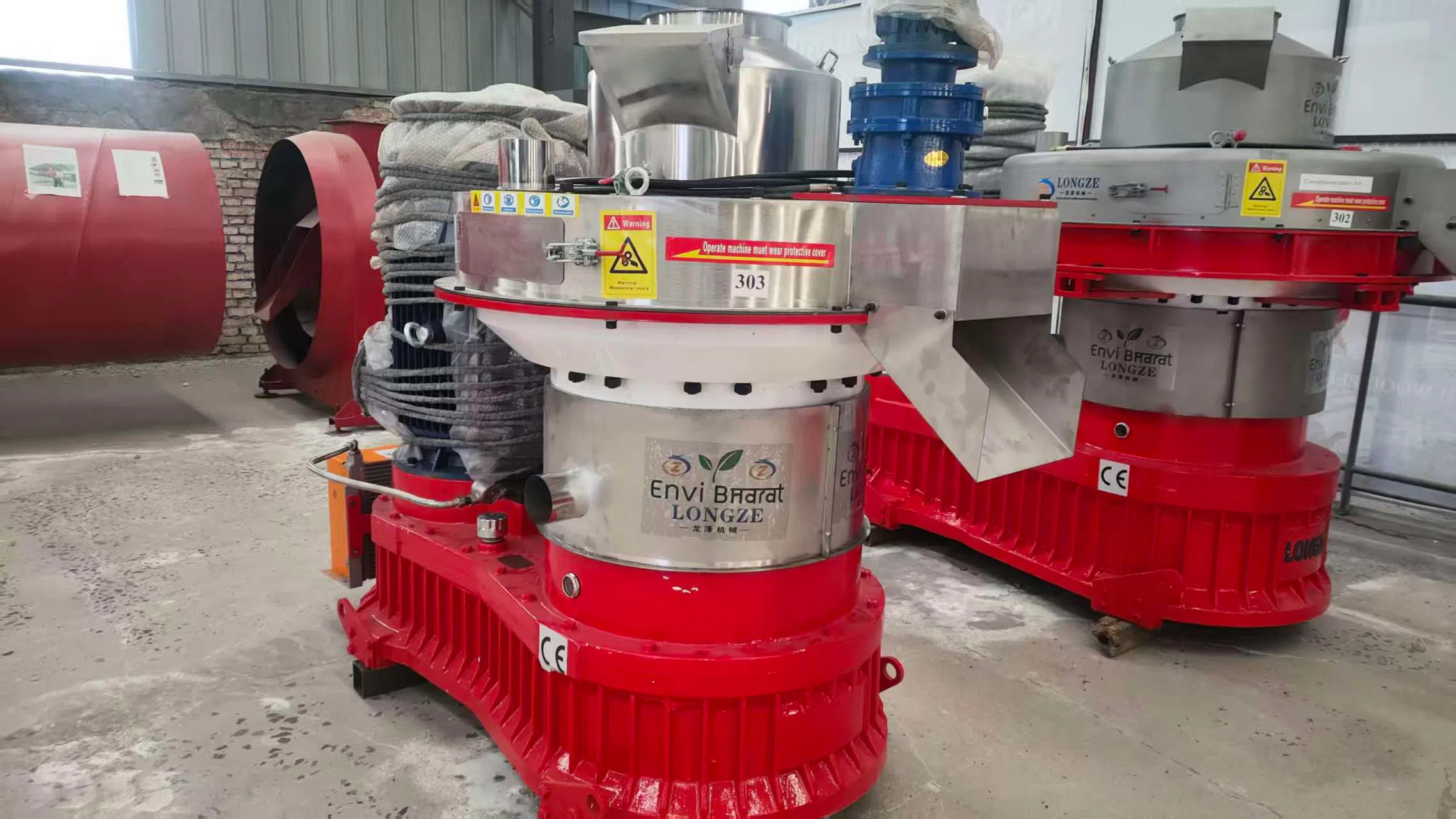

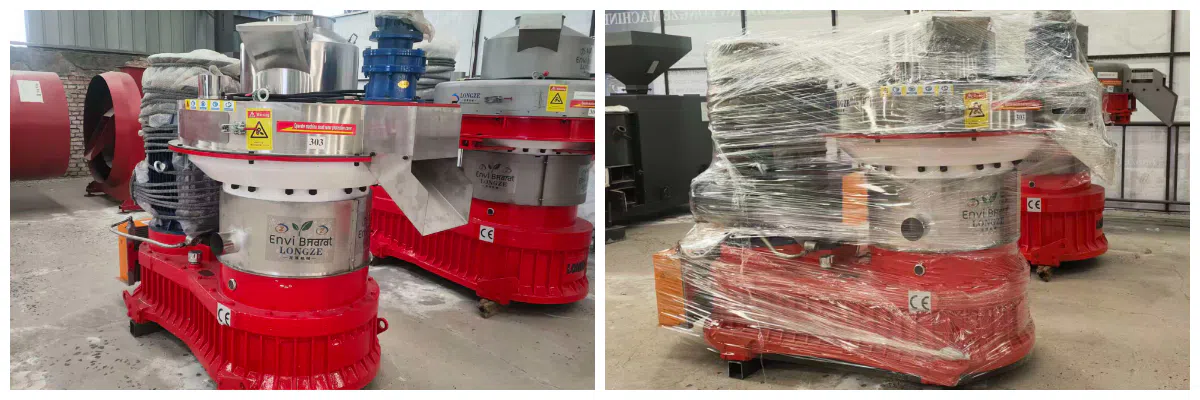

The 110KW sawdust ring die pellet machine is a high-output biomass pelletizing unit tailored for mid-sized commercial pellet plants seeking higher throughput. Built with a robust vertical ring die structure and twin roller compression assembly, this model delivers stable extrusion performance under continuous round-the-clock operation. Its rated production capacity falls between 1.2 to 1.7 tonnes per hour, supporting pellet sizes ranging from 6mm up to 12mm to satisfy diverse buyer specifications.

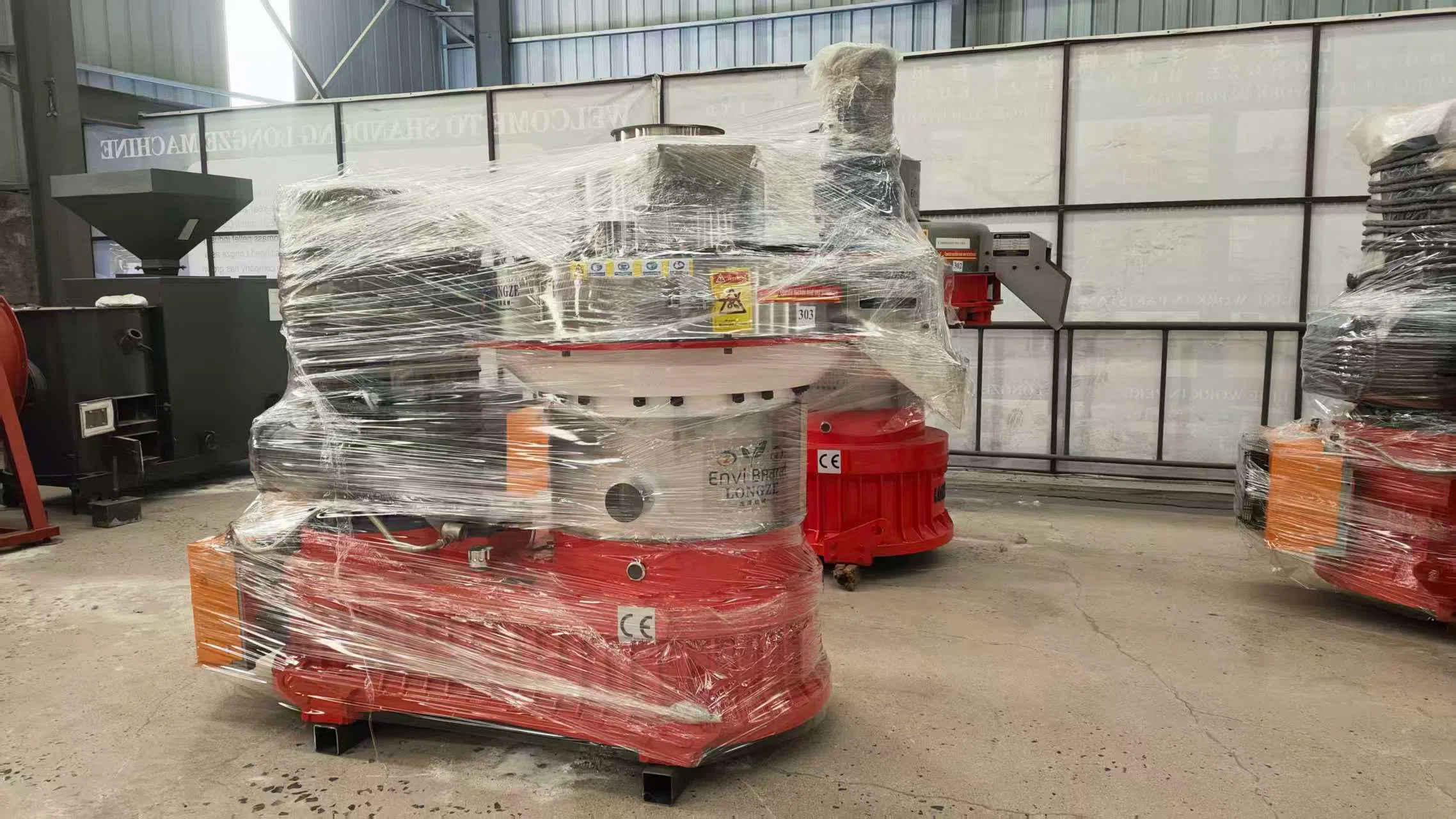

The unit adopts an updated generation gear reduction drive, paired with a soft-start electric control cabinet as standard within the full package. Weighing 4100kg and occupying a footprint of 2100×1700×1600 mm, it maintains structural rigidity to dampen vibration during heavy loads. The complete configuration covers feeding, dual lubrication circuits and cyclone dust extraction. This machine has been successfully delivered to Indian biomass operators, and it excels at processing local woody raw materials, offering plant owners a reliable upgrade option when higher production volumes are required.
Parameters
(110KW) XGJ560 Pellet Machine | - Output: 1.2-1.7T/H - Power (kw): 110+1.5+0.75+0.75+0.25kw -Number of rollers: 2 pcs -Pellet diameter option :6, 8,10,12mm -Weight of machine (kgs):4100kg - Dimension(mm):2100*1700*1600 - New generation Gear reducer system Whole set include: *Pellet push system 1.5kw *Gear oil lubricate pump 0.75kw *Cyclone dust collector 0.75kw *Automatic roller lubrication pump 0.25kw *Electric control Box (Soft Start) |
Advantages
The 110KW XGJ560 ring die pellet mill brings notable gains in production capacity while keeping operational reliability at a high level. Its next-gen gear reducer transmits torque with minimal power loss, unlike conventional belt drives that suffer slipping under heavy loads. The two-roller compression mechanism distributes pressure evenly across the ring die, extending die service life and lowering the frequency of replacement parts.
The standard soft-start electric control cabinet is a key upgrade. It limits current spikes at startup, protecting both the main motor and gearbox from sudden mechanical shocks. Dual independent lubrication systems serve the gearbox and rollers separately, maintaining proper oil levels automatically and cutting human maintenance errors. The built-in cyclone dust collector captures fine wood debris, keeping the working area tidy and shielding electrical hardware from dust erosion. With a 3-year warranty on the gear reducer, this equipment reduces operational risks and stabilizes long-term production revenue for biomass factories.
FAQ
Q1: What is the hourly output of the XGJ560 110KW ring die pellet mill?
A1: The rated production capacity ranges from 1.2 to 1.7 tons per hour. Actual output varies based on raw material type, moisture content and selected pellet diameter.
Q2: What type of materials is this machine designed for?
A2: It is developed for woody biomass raw materials and agricultural waste to produce biomass fuel pellets.
Q3: What is the advantage of the soft-start control box?
A3: Soft start reduces starting current, mitigates impact loads on the motor and gear reducer, protects electrical components and adapts to power grids with unstable voltage.
