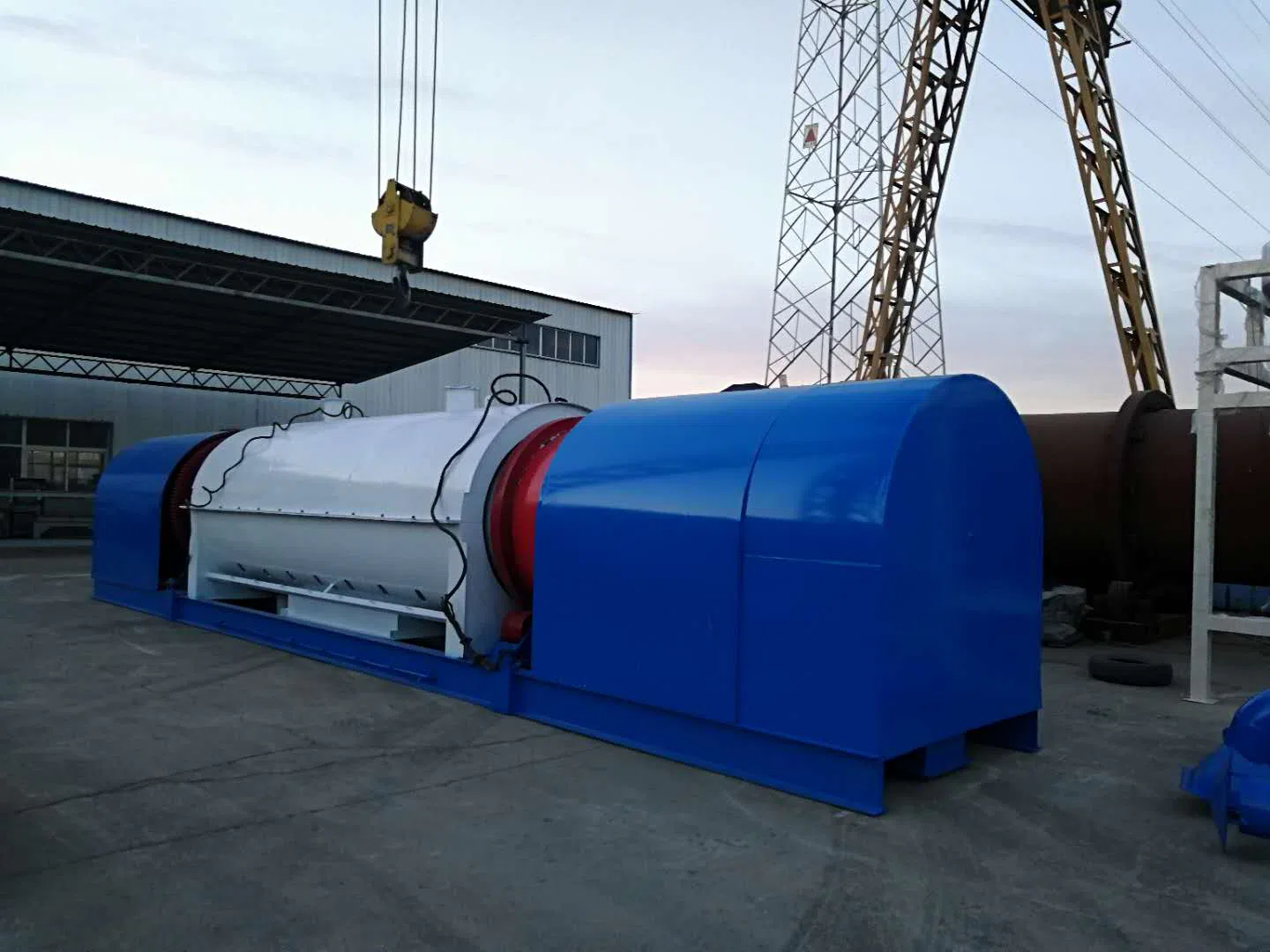

Rotary Continuous Charcoal Making Furnace

  • Drum diameter: 1200mm

  • Drum length: 11500mm

  • Feed Power: 3+1.1KW

  • Drive motor: 7.5KW

  • Fan motor: 11KW

  • Oxygen intake fan: 80w

  • Final charcoal output: 800-1000kg/h

  • Cylinder material: 304SS or Boiler steel

  • Feed temperature: 350-450°C

  • Output temperature: 50°C

Pruduct Introduction

This Longze Continuous Carbonization Furnace is a fully continuous carbonization equipment for biomass raw materials. It maintains stable carbonization temperature inside the drum and realizes uninterrupted feeding and charcoal discharging. It supports multiple heating fuel options and adopts high-quality cylinder material for long service life, bringing high-efficiency charcoal production for your business.

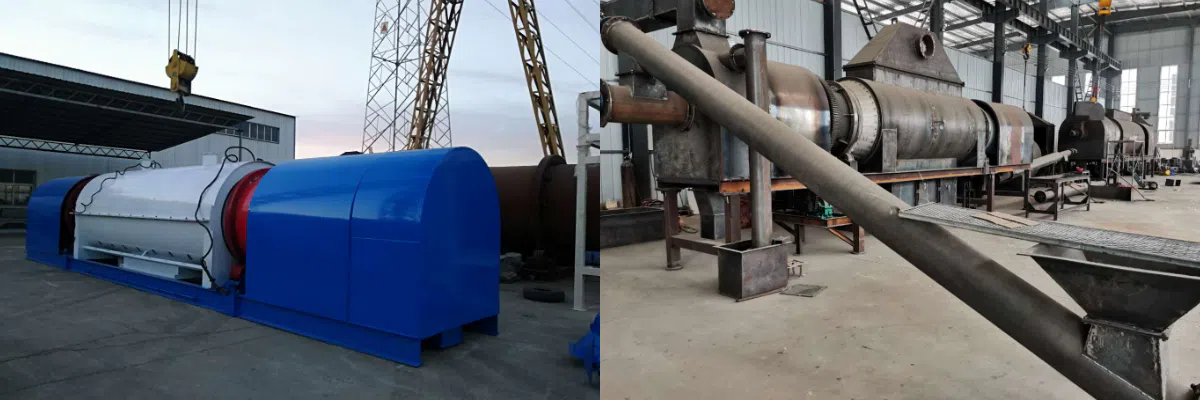

Rotary Continuous Charcoal Making Furnace

Product Advantages

  • Continuous running design, high charcoal output of 800-1000kg/h

  • Multiple optional heating fuels to reduce operation cost

  • Optional 304 stainless steel or boiler steel cylinder, anti-corrosion and durable

  • Low finished charcoal output temperature for safe collection

  • Stable temperature control, reliable carbonization effect

Application Scenarios

Suitable for continuous carbonization of wood, bamboo, coconut shell, rice husk and other biomass raw materials. Widely used in charcoal factories, biomass energy plants and carbon processing production lines. It can steadily produce high-quality charcoal for barbecue, shisha, industrial carbon and agricultural soil improvement. The continuous working structure supports long-time non-stop production, ideal for medium and large-scale charcoal manufacturing projects with high daily output requirements.

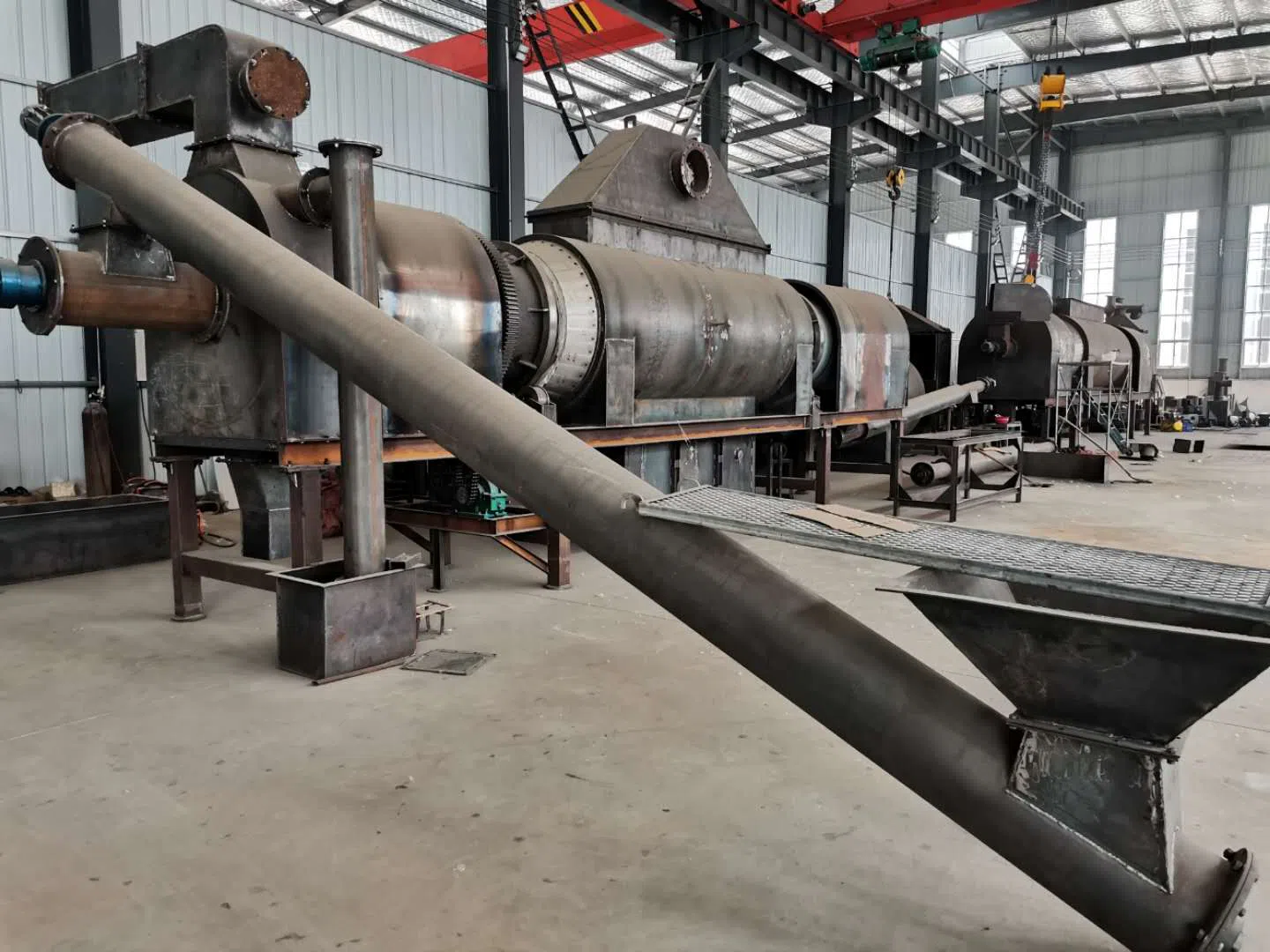

Rotary Continuous Charcoal Making Furnace

FAQ

Q1: What is the hourly charcoal output of this continuous carbonization furnace?

A1: Its final charcoal output can reach 800 to 1000 kg per hour.

Q2: What fuels can be used to heat this furnace?

A2: It can use firewood, natural gas, LPG gas and biomass burner as heating sources.

Q3: What material choices are available for the furnace cylinder?

A3: You can choose 304 stainless steel or boiler steel for the cylinder.
