Introduction

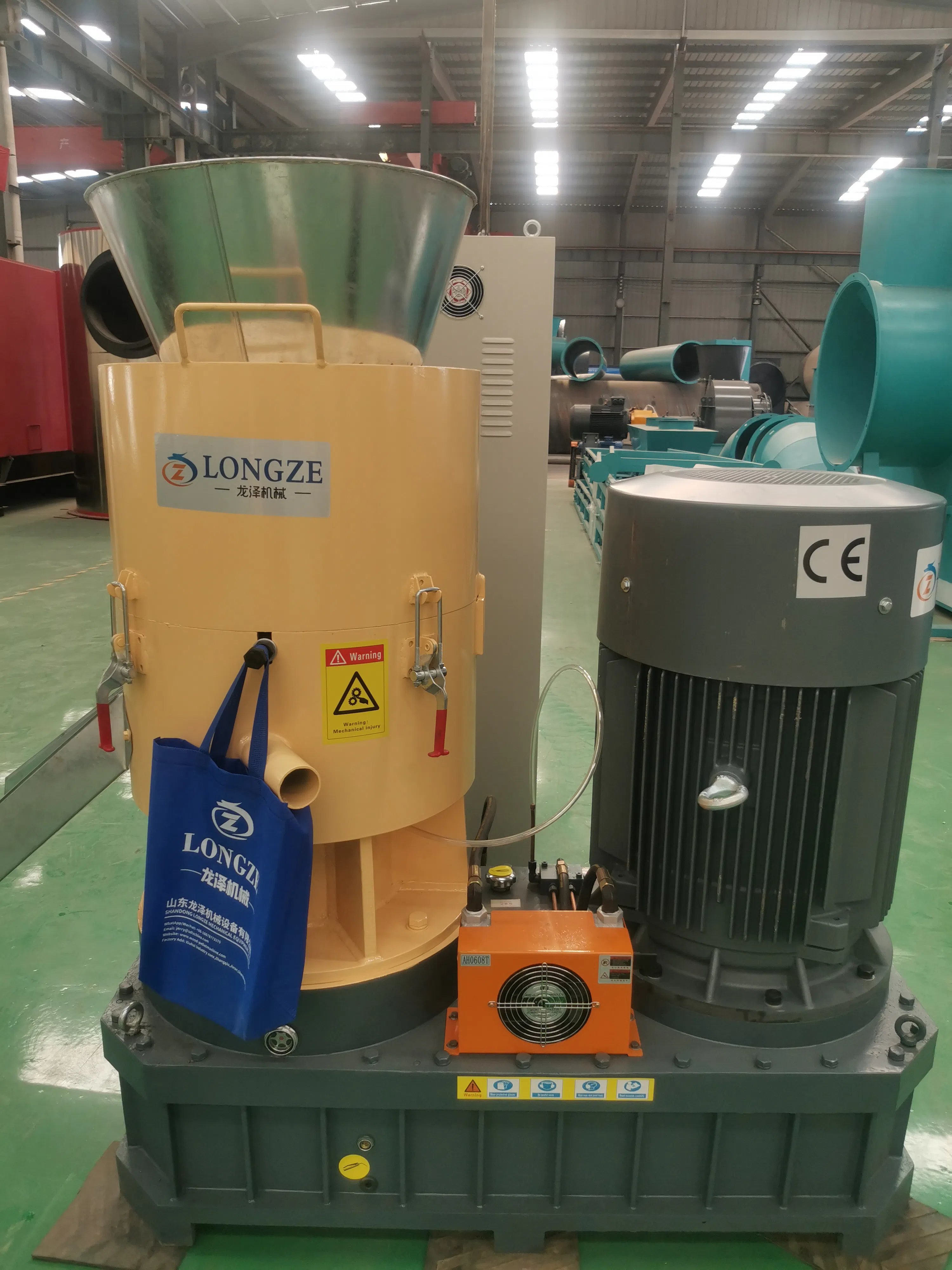

Our premium Flat Die Pellet Machine For Sale, the SKJ560 75KW flat die pellet mill, is a top-tier heavy industrial pelletizing unit engineered exclusively for large-scale commercial and factory-scale continuous production.
Equipped with a refined next-generation gear reduction drive system, the machine generates consistent high torque to sustain round-the-clock heavy-load operation. Built with a robust 2500kg solid steel frame and optimized 2100×1000×1700mm body layout, the dual-roller extrusion structure ensures uniform pressure and superior pellet forming precision. It achieves industrial-grade output of 800–1000kg/h for woody biomass materials and 1600–2000kg/h for diverse feed formulas. Customizable 4mm to 10mm dies cover all mainstream pellet standards, making it ideal for large-scale standardized pellet production factories.
Parameters
Flat die pellet mill SKJ560 | - Power: 75kw - New generation Gear reducer system -Capacity for wood:800-1000kg/h -Capacity for feed:1600-2000kg/h --Die Mould can choose: 4mm/6mm/8mm/10mm - Roller numbers: 2 rollers - Weight (T): 2500kg - Dimension (mm): 2100×1000×1700 Whole set include: *Pellet machine with electric motor *Oil lubricating pump *Repair Tool |
Advantages
Breaking the output limitations of conventional pellet equipment, the SKJ560 75KW heavy-duty pellet mill optimizes core transmission and extrusion components to achieve upgraded industrial production performance. The refined gear drive structure improves operational stability and component durability, resisting fatigue wear under long-term high-load working conditions, far exceeding the reliability of traditional transmission structures.
Its exclusive independent production mode allows each unit to maximize professional performance without scenario conflicts. The balanced dual-roller extrusion technology ensures uniform material compression, producing smooth, compact and durable pellets. Four interchangeable die sizes fully meet customized specifications for industrial fuel and livestock feed. Featuring ultra-high feed processing capacity, simple automated operation and low long-term maintenance costs, this industrial-grade equipment possesses strong market adaptability and high cost performance for large commercial pellet manufacturing and intensive breeding projects.
FAQ
Q1: What industrial-level output can the SKJ560 model achieve?
A1: Equipped with 75KW high-power motor and upgraded gear reducer, it delivers super-large industrial throughput. The dedicated biomass model reaches 800–1000kg/h, while the professional feed model hits 1600–2000kg/h, supporting 24-hour continuous factory mass production.
Q2: Does this machine support customized pellet sizes?
A2: Yes. It is compatible with four mainstream interchangeable moulds: 4mm, 6mm, 8mm and 10mm. Users can replace dies freely to produce pellets of different diameters, adapting to diverse fuel combustion and livestock feeding requirements.
Q3: What industrial scenarios is this heavy-duty pellet mill suitable for?
A3: It is exclusively for large-scale industrial scenarios: biomass waste recycling factories, clean energy fuel production lines, large feed processing plants and intensive large-scale livestock breeding bases, not suitable for small household production.
