Introduction

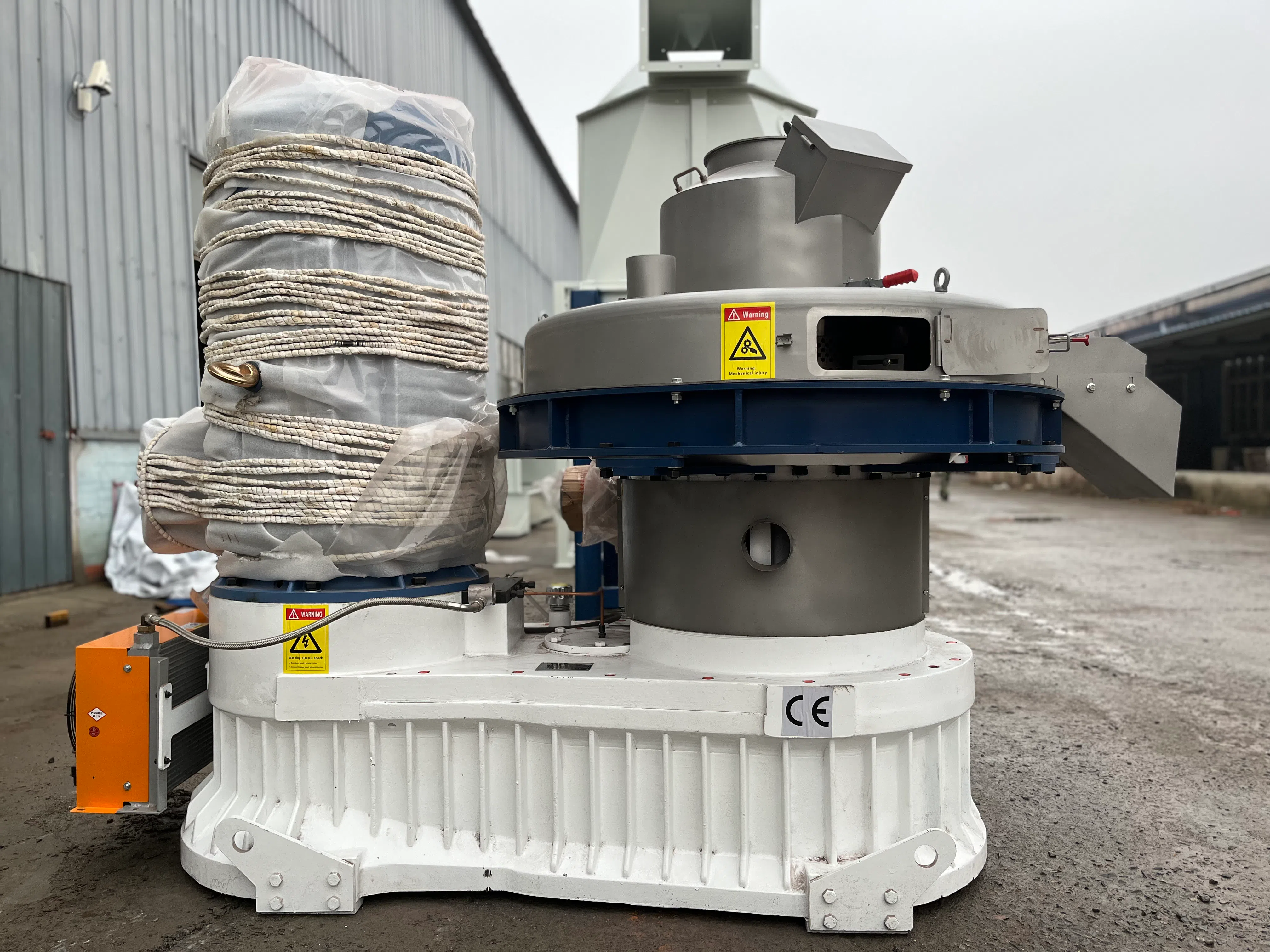

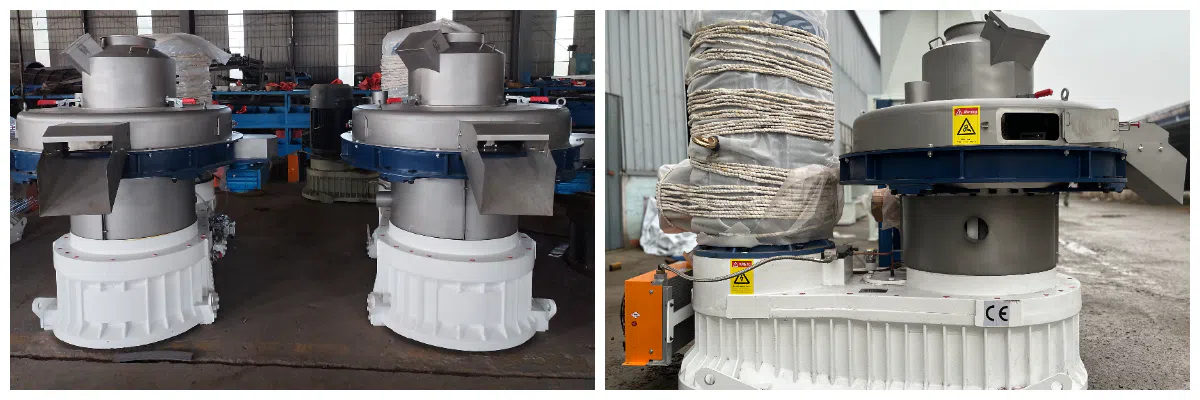

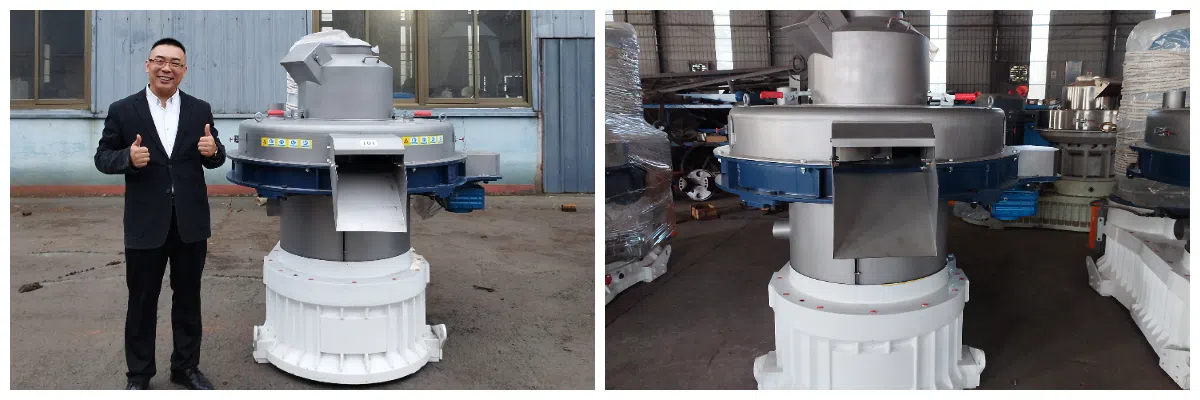

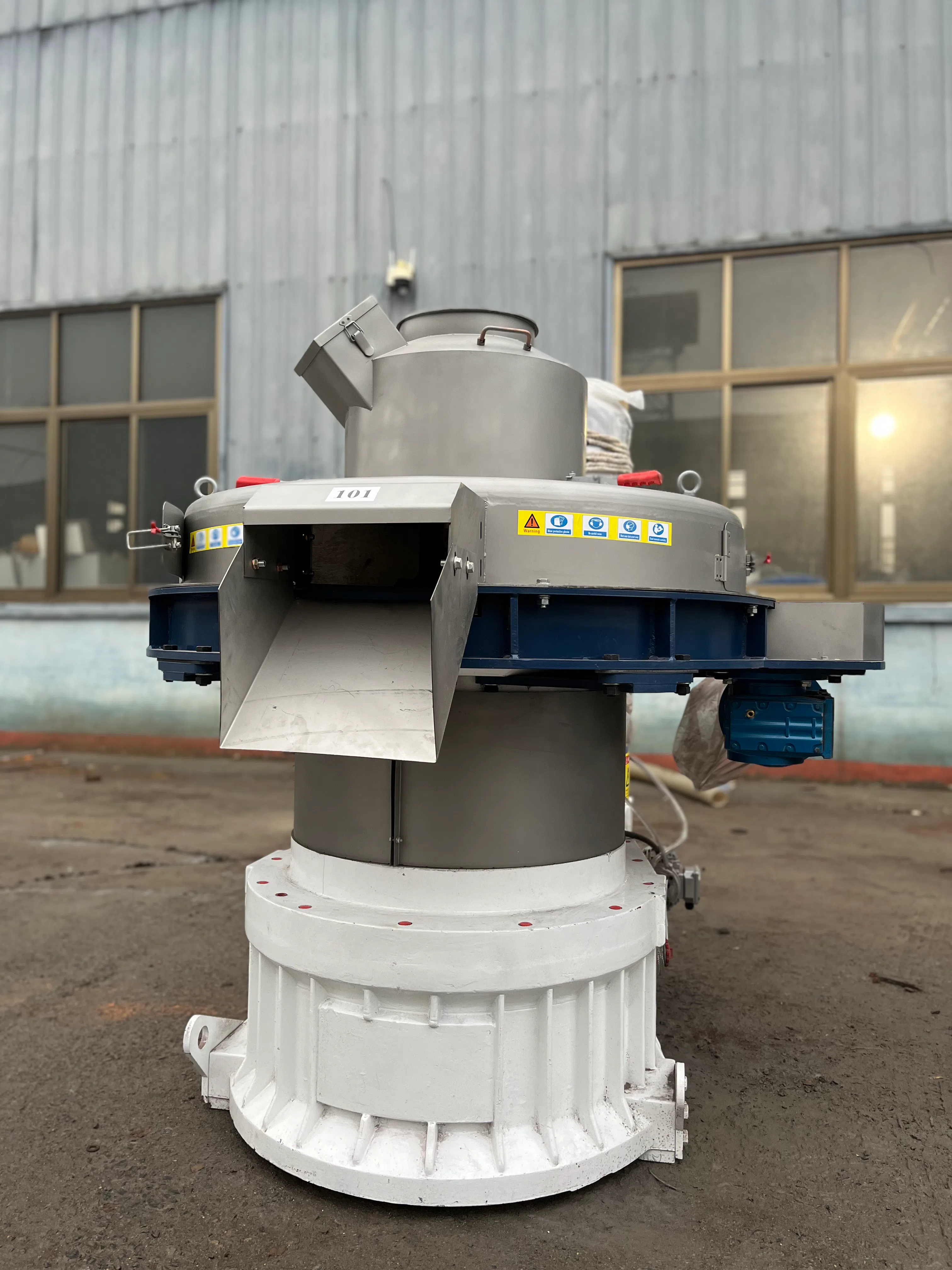

Serving mid-to-large biomass processing enterprises globally, the 8th-generation 160KW XGJ560 sawdust pellet making machine is a well-balanced high-power pelletizing unit for routine batch industrial manufacturing. It offers a steady hourly output of 1.7–2.3 tons, filling the performance gap between standard medium-power devices and heavy industrial equipment. Its compact 2200*1700*1650mm layout and 5200kg integrated steel frame enhance overall structural stability, minimizing vibration and mechanical wear during extended continuous operating cycles.
Innovative gear reduction technology optimizes internal power transmission, cutting energy loss and improving operating efficiency across long working hours. Complete automated auxiliary modules, including dedicated lubrication, dust removal and material pushing units, enable hands-free continuous production workflows.
Parameters
8TH(160KW) XGJ560 Pellet Machine | - Output: 1.7-2.3T/H - Power (kw): 160+3+0.75+0.75+0.25kw -Number of rollers: 2 pcs -Pellet diameter option :6, 8,10,12mm -Weight of machine (kgs):5200kg - Dimension(mm):2200*1700*1650 - New generation Gear reducer system Whole set include: *Pellet push system 3kw *Gear oil lubricate pump 0.75kw *Cyclone dust collector 0.75kw *Automatic roller lubrication pump 0.25kw *Electric control Box(Soft Start) |
Advantages
1. Optimized power coordination: A high-torque 160KW main motor pairs with a 3KW upgraded feeding device to synchronize material delivery and high-pressure extrusion. This scientific matching eliminates feeding delays and material buildup issues, sustaining stable peak output and boosting overall factory productivity.
2. Energy-efficient transmission system: Refined gear reducer structure reduces internal mechanical friction and idle power waste. The heavy-duty integrated body restrains operating vibration, ensuring uniform pellet density and stable finished product quality throughout continuous batch production.
3. Low-failure continuous operation: Dual lubrication modules and independent dust removal equipment maintain clean internal operation and full-component lubrication, lowering daily malfunction risks and supporting longer uninterrupted working cycles for mid-sized industrial workshops.
FAQ
Q1: What kind of production environment is this unit suitable for?
A1: It adapts to standardized large industrial workshops and tropical high-temperature working environments. It runs stably with diverse woody raw materials and tolerates long-hour intensive industrial operation.
Q2: How does this machine realize high-efficiency commercial production?
A2: Equipped with full automatic auxiliary systems, it supports stable 24-hour unmanned cyclic operation. The coordinated high-power host and feeding system improves effective production efficiency, lowers labor costs, and fully satisfies the daily batch production needs of medium-sized commercial pellet plants.
Q3: Can pellet sizes be adjusted flexibly for different market needs?
A3: Yes. Operators can quickly replace ring dies to switch between 6mm, 8mm, 10mm and 12mm pellet specifications. Flexible size adjustment adapts to diversified fuel requirements for local industrial use and cross-border export trade, improving market adaptability.
