Pruduct Introduction

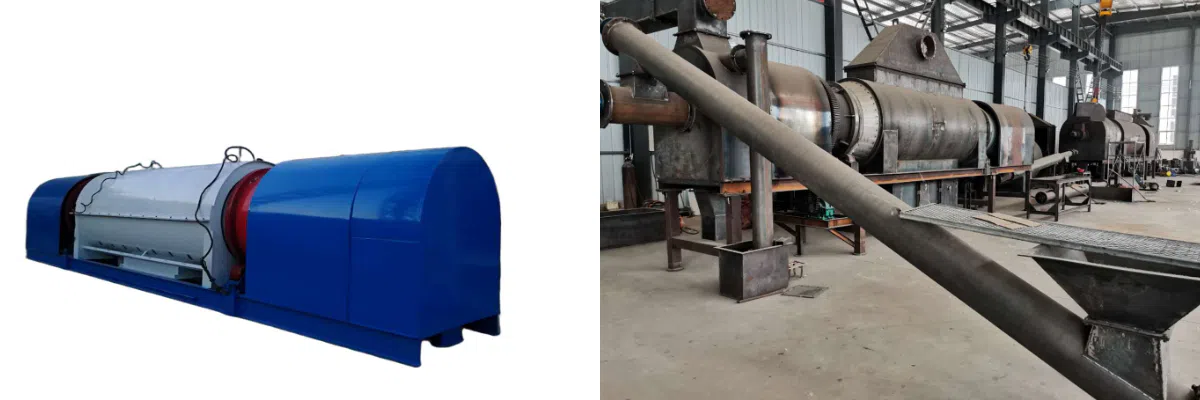

Longze Brand Rotary Continuous Charcoal Making Furnace is a fully continuous biomass carbonization equipment designed for large-scale charcoal production. The main drum adopts optional 304SS or Boiler steel material, with drum diameter of 1500mm and drum length of 11500mm. The whole set is equipped with matched feeding, driving, air supply and cooling discharging systems. It supports multiple heating fuels including firewood, natural gas, LPG gas and biomass burner. The feeding temperature keeps 350-450°C. Raw materials should be less than 3cm in size and moisture content below 15%. The machine reaches a charcoal output of 2000-2500kg per hour. The supporting screw loading conveyor is 325mm in diameter, 6m long with 3kw power. The screw cooling discharge conveyor is double pipe structure, outer diameter 325mm, inner diameter 219mm, length 6m and power 5.5kw. Combined power configuration includes feed power 5.5+3kw, drive motor 15kw, fan motor 22kw and oxygen intake fan 7.5kw. This continuous carbonization furnace realizes uninterrupted feeding, carbonization and cooling discharging, greatly improving production efficiency compared with batch charcoal kilns.
Product Advantages
1.Continuous Running & High Output. Stable hourly capacity of 2000-2500kg, works nonstop for mass charcoal production, saves labor and shortens production cycle.
2.Multiple Heating Fuel Options. Flexible to choose firewood, natural gas, LPG gas or biomass burner to match local fuel condition and cut operation cost.
3.Reliable Drum Material Selection. Customers can pick 304SS or Boiler steel cylinder according to working environment, good high temperature resistance and long service life.
4.Complete Supporting Conveying System. Matched screw feeding and double-pipe cooling discharge conveyor realize sealed material transfer, prevent charcoal re-ignition and reduce smoke leakage.
5.Precise Temperature & Raw Material Control. Stable carbonization temperature 350-450°C. It only requires raw material size below 3cm and moisture less than 15%, easy for raw material pretreatment.
6.Reasonable Power Matching. Independent power configuration for feeding, driving and air supply ensures stable operation and convenient maintenance.
Application Specifications
Biomass processing plants for producing charcoal from wood chips, sawdust, bamboo scraps, fruit shells and crop stalks.
Large charcoal factories for barbecue charcoal, hookah charcoal, industrial carbon and activated carbon semi-finished products.
Agricultural waste recycling projects to turn farm and forest residues into high-value carbon products.
Environmental protection solid waste treatment projects for biomass waste harmless treatment and resource recovery.
Commercial carbon production enterprises with demand for 2-ton to 2.5-ton per hour continuous carbonization.
FAQ
Q1: What raw materials can this Longze rotary continuous charcoal making furnace process?
A1: It can process wood chips, bamboo scraps, nut shells and crop stalks. Raw material size needs to be less than 3cm and moisture content below 15% to guarantee stable carbonization quality.
Q2: What is the hourly output of this continuous charcoal furnace?
A2: The final charcoal output is 2000 to 2500kg per hour under qualified raw material and stable heating condition.
Q3: What material options are available for the main carbonization drum?
A3: Two options are provided: 304 stainless steel or Boiler steel, you can select based on your budget and working environment requirements.
